ACCELERATE RTL DESIGN CYCLES：
10X TO 1000X SPEEDUP WITH ULTRA-FAST MULTICORE COMPILER TECHNOLOGY




WHY DASHRTL?

DashRTL is a high-performance RTL design platform engineered for large-scale chip designs. As projects grow in complexity, RTL development often requires frequent compilations to identify and resolve issues during iterative design cycles. Traditional approaches, such as using linting, synthesis, or simulation tools, can be highly time-consuming and inefficient.

DashRTL overcomes these challenges with its ultra-fast multicore compiler, which enables parallel RTL processing for rapid design iterations. For large-scale SoC projects, DashRTL’s robust capacity and scalability supports full-chip RTL compilation and comprehensive checks, eliminating the need for time-intensive hierarchical RTL checking.

Whether you are verifying syntax, checking synthesizability, or exploring design hierarchies, DashRTL ensures that your RTL code is error-free and ready for design integration, reducing iteration cycles from hours to seconds.



PERFORMANCE

DashRTL leverages innovative multicore compiler technology to achieve 10x-1000x improvements over traditional RTL checking tools.

This runtime data compares DashRTL with mainstream linting, synthesis, and simulation tools, all based on a direct comparison of the total time spent on the analyze and elaborate steps.

RTL Reading Runtime DashRTL Linting Tool Synthesis Tool Simulation Tool
Design A | Cell Count ~0.1M 0.6s 69s 23s 7s
Design B | Cell Count ~0.4M 1.5s 169s 54s 12s
Design C | Cell Count ~2.5M 3.0s 237s 122s 61s


KEY BENEFITS
Items DashRTL Linting Tool Synthesis Tool Simulation Tool
Checking Performance Ultra-Fast Very Slow Slow Fast
Checking Scalability Block / Full Chip Block / Hierarchical Block / Hierarchical Block / Hierarchical
Checking Strategy Moderate Over Check Under Check Under Check
Synthesizability Check Yes Partial Yes No
Message Classification in GUI Yes Yes No No
Command-Line Mode Tcl / Python / Mix Tcl Tcl / Python Tcl
RTL Read Processing Multi Core Single Core Single Core Single Core
RTL Cross-Probing with External Editor Yes No No No


KEY FEATURES

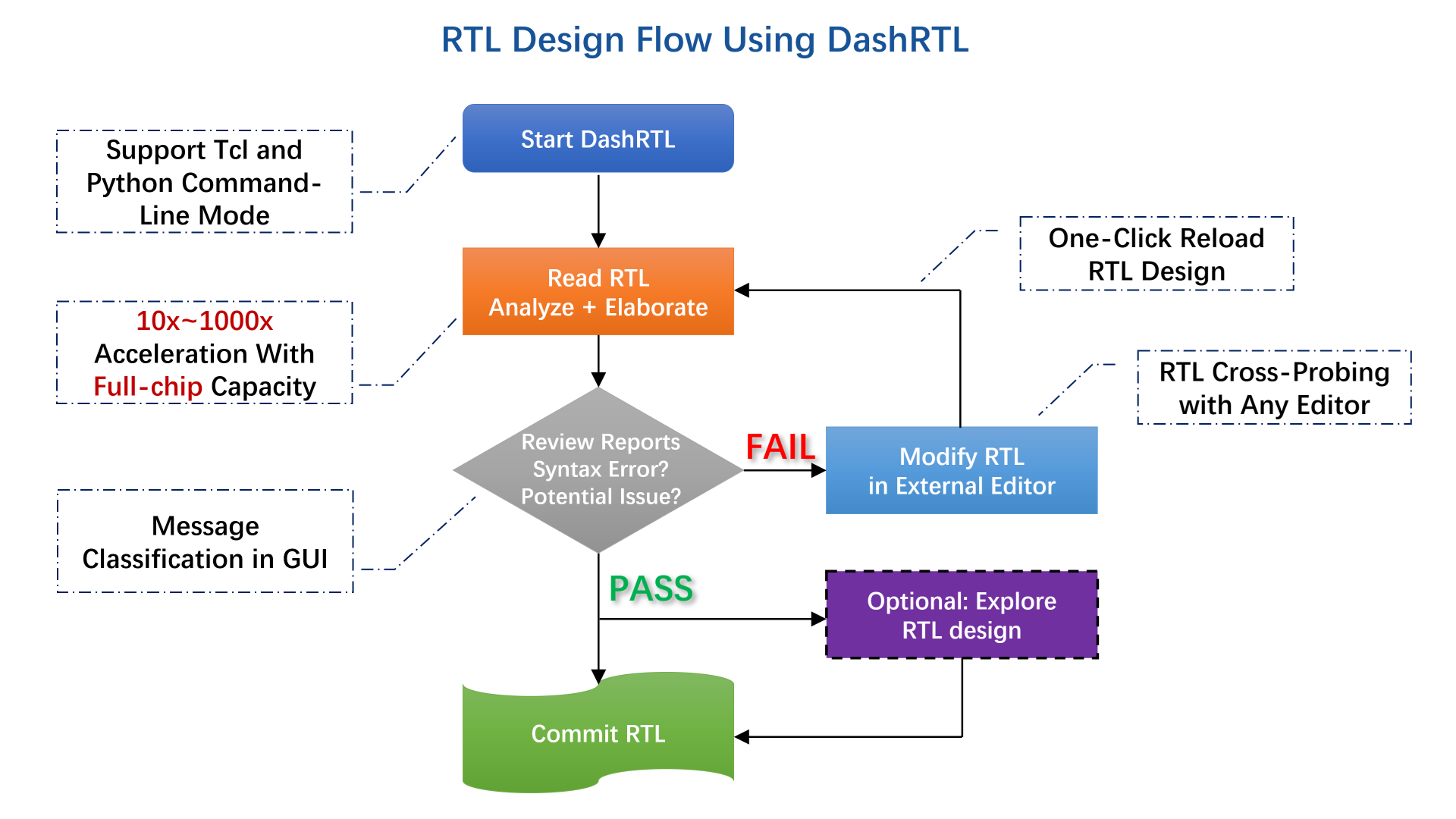

Dynamic Workflow

Offers dual launch modes (Simulation-Style and Synthesis-Style) and supports Tcl/Python scripting for customizable workflows.

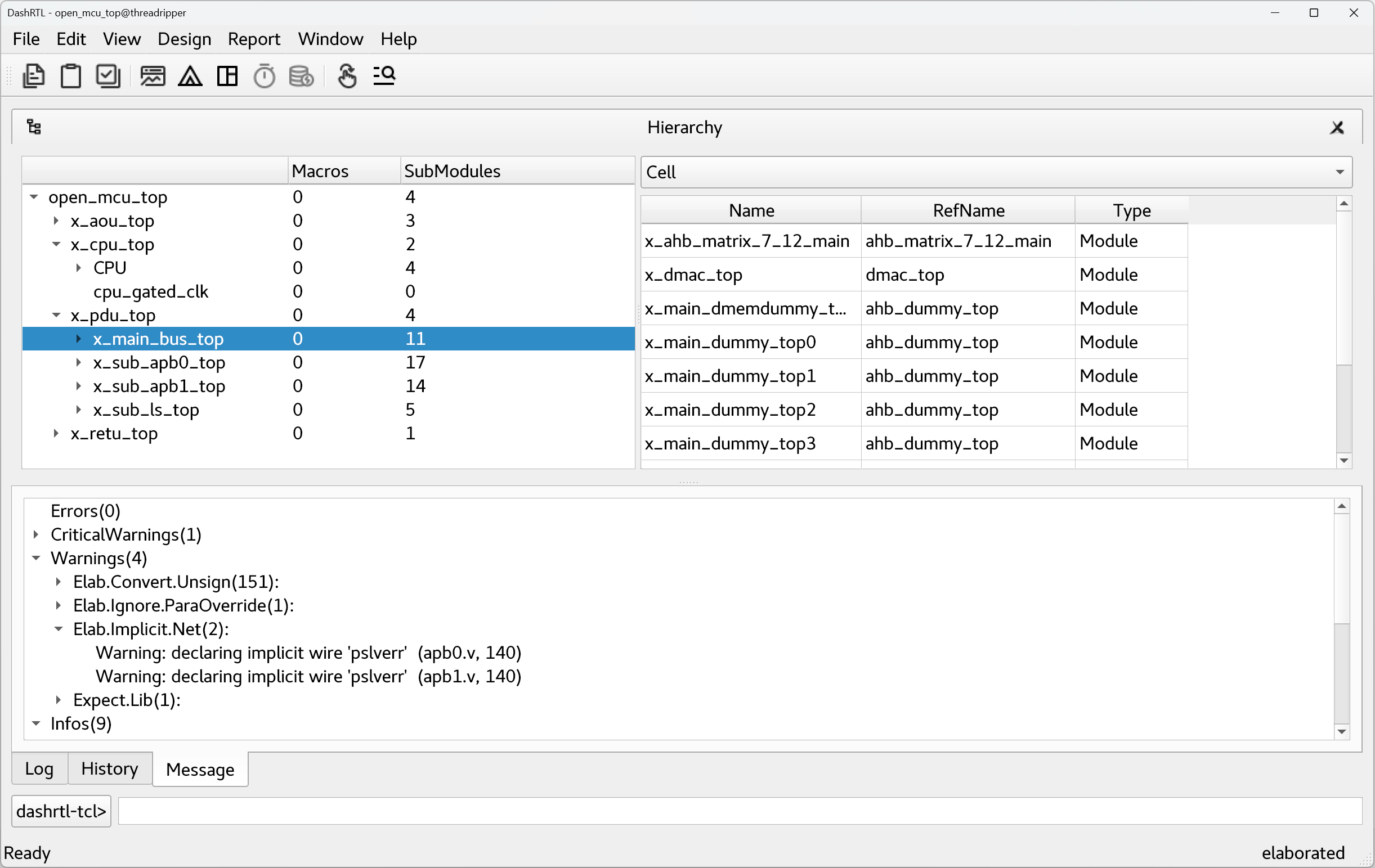

Smart GUI

Features cross-probe debugging, message classification, and one-click navigation to code lines in third-party editors for instant issue resolution.

Design Exploration

Enables hierarchical exploration of RTL designs, including design object and property analysis, for deeper insights into design structures.
